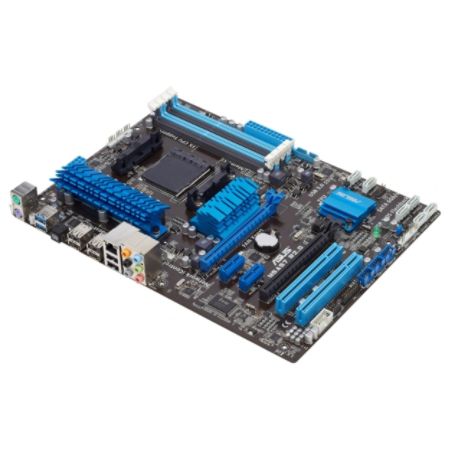

Asus M5A97 R2.0 Desktop Motherboard - AMD 970 Chipset - Socket AM3+ Item # 391339
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
391339
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
AMD® Socket AM3+ for AMD® FX Series CPU up to 8-core
AMD® FX™-Series/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors (socket AM3+/AM3) M5A97 R2.0 supports AMD® AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1866 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.
Product Details
| Item # | 391339 |
| Manufacturer # | PP9600 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 2 |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 8 |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | CrossFireX |
| RAID Levels | 0; 1; 5; 1+0 |
| Memory Speed Supported | 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Processor Supported | FX; Athlon II; Pentium II; Sempron; Athlon II X2; Athlon II X3; Athlon II X4; Athlon X2; Phenom II X2; Phenom II X3; Phenom II X4; Phenom II X6; Sempron X2 |
| height | 2.3in. |
| S/PDIF | Yes |
| Certifications & Standards | CE; FCC; ErP Ready |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 8 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Audio Header | Yes |
| width | 12in. |
| package contents | M5A97 R2.0 Desktop Motherboard; 2 x Serial ATA 6.0Gb/s Cables; 1 x I/O Shield; 1 x User Manual; 1 x Support DVD |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC887 |
| Audio Line In | Yes |
| depth | 9" |
| Product Name | M5A97 R2.0 Desktop Motherboard |
| Number of PCI Express x16 Slots | 2 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 4 |
| HyperTransport Speed | 4.80 GT/s |
| manufacturer | ASUS Computer International |
| 64-bit Processing | Yes |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| weight | 3 lb |
| RAID Supported | Yes |
| brand name | Asus |
| Maximum Memory | 32 GB |
| controller type | Serial ATA/600 |
| Audio Channels | 7.1 |
| Number of Onboard USB 2.0 Ports | 6 |
| Gigabit Ethernet | Yes |
| Number of USB 3.0 Ports | 2 |
| Processor Technology | Cool'n'Quiet Technology |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Number of USB 2.0 Ports | 6 |
| Onboard Serial Header | Yes |
| Buttons & Keys | DirectKey; MemOK; BIOS Flashback |
| PS/2 Port | Yes |
| Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Form Factor | UDIMM |
| Number of Total Expansion Slots | 6 |
| Processor Socket | Socket AM3+ |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | 970 |
| Chipset Manufacturer | AMD |
| form factor | ATX |
| Memory Technology | DDR3 SDRAM |
| Onboard Video | No |
| PCI Express Standard | PCI Express 2.0 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| model name | M5A97 R2.0 |
| Onboard S/PDIF Header | Yes |
| Number of PCI Slots | 2 |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
SuperSpeed USB (USB 3.1 Gen 1)
-
SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.
USB 3.1 Specification
The USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
- USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
- USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)
Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
-
What the Logos Mean to You
To use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the www.usb.org website or look for the Certified SuperSpeed USB logo on the product or product packaging.
